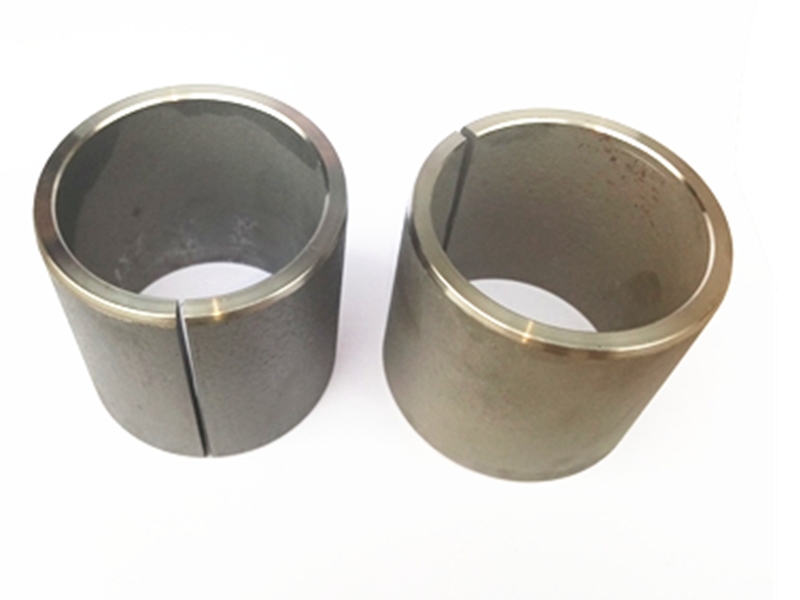

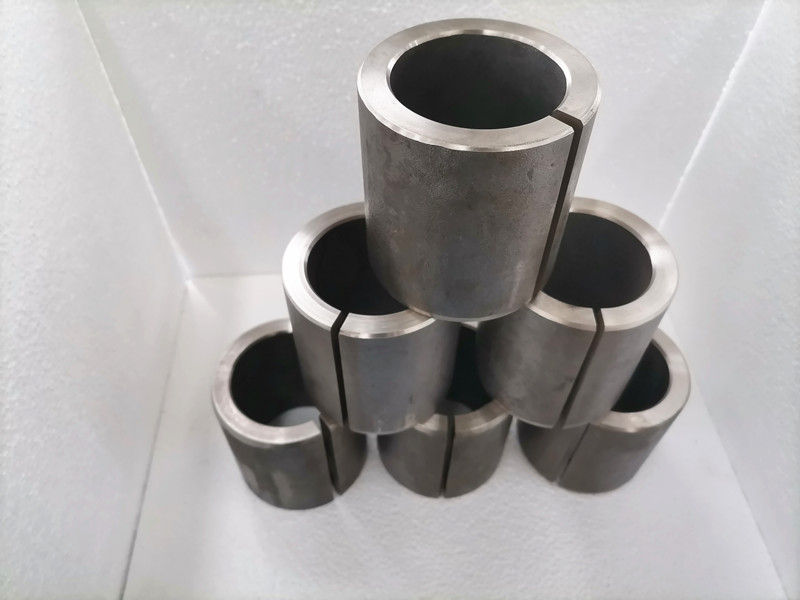

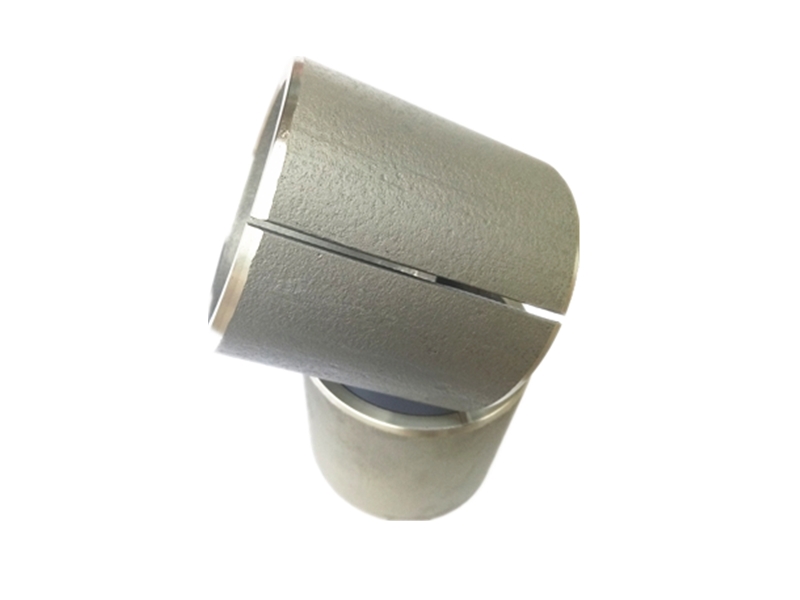

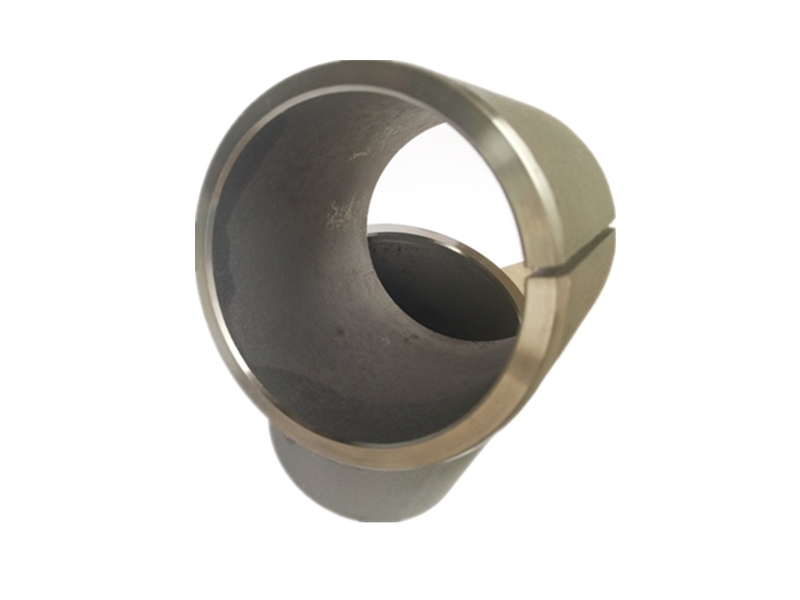

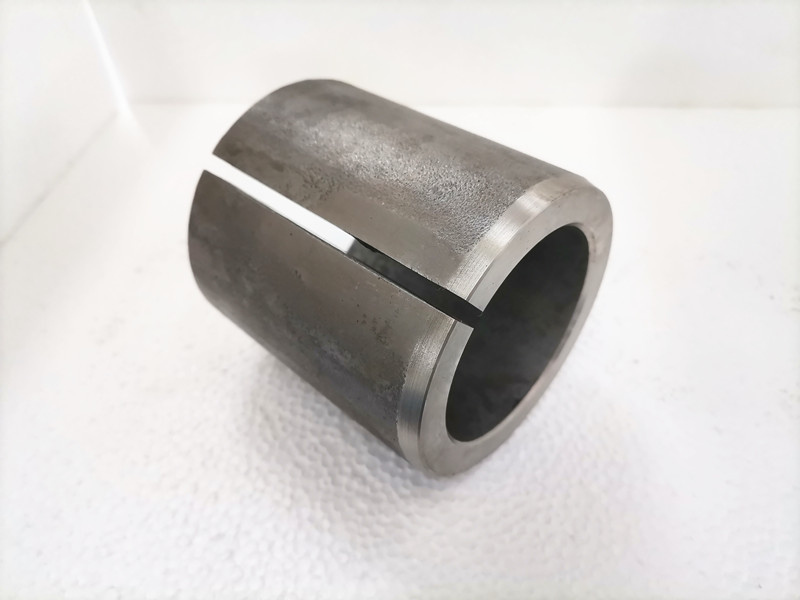

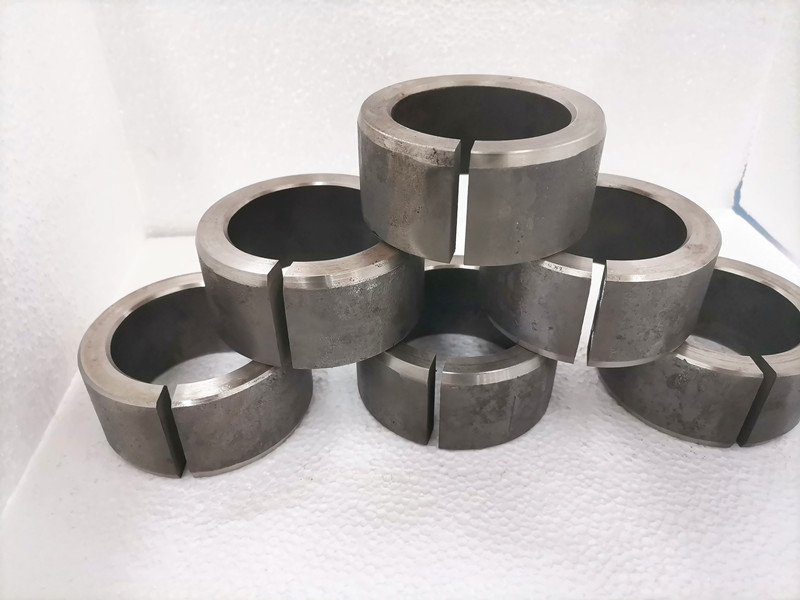

Rolled X120Mn12 Split Bushing

We are here to help:Easy ways to get the answers you need.

Send Email Catalog Download

Product Structure

We produce rolled split bushing.
Material: X120Mn12(EN1.3401)
Standard: DIN 1498,1499

Product Describe

Specifications: OD 60-320mm×ID 50-290mm×L
Feature:The product is featured by high strength, great toughness, an elongation up to 35 to 60%, the ratio of yield strength to tensile strength being less than 0.4. Thus parts are less likely to have fractures under the working condition and the safety of parts may be effectively protected.

Available products

Mechanical performance

Chemical Compsitions:
Product C Mn P S Si Cr Mo V
Forged-X120Mn12  0.95-1.2 11-14 ≤0.06 ≤0.04 0.3-0.9
Forged-Mn18 1.05-1.35 16-19 ≤0.06 ≤0.04 ≤0.8

Mechanical Performance:

Product Tenslie Strength Yield Strength Elongation Impact Toughness
Forged-X120Mn12  ≥880MPa ≥350MPa ≥35% ≥275J/cm2
Forged-Mn18 ≥1050MPa ≥650MPa ≥25% ≥175J/cm2

Typical Application

  • Rolled X120Mn12 Split Bushing
  • Rolled X120Mn12 Split Bushing
  • Rolled X120Mn12 Split Bushing
